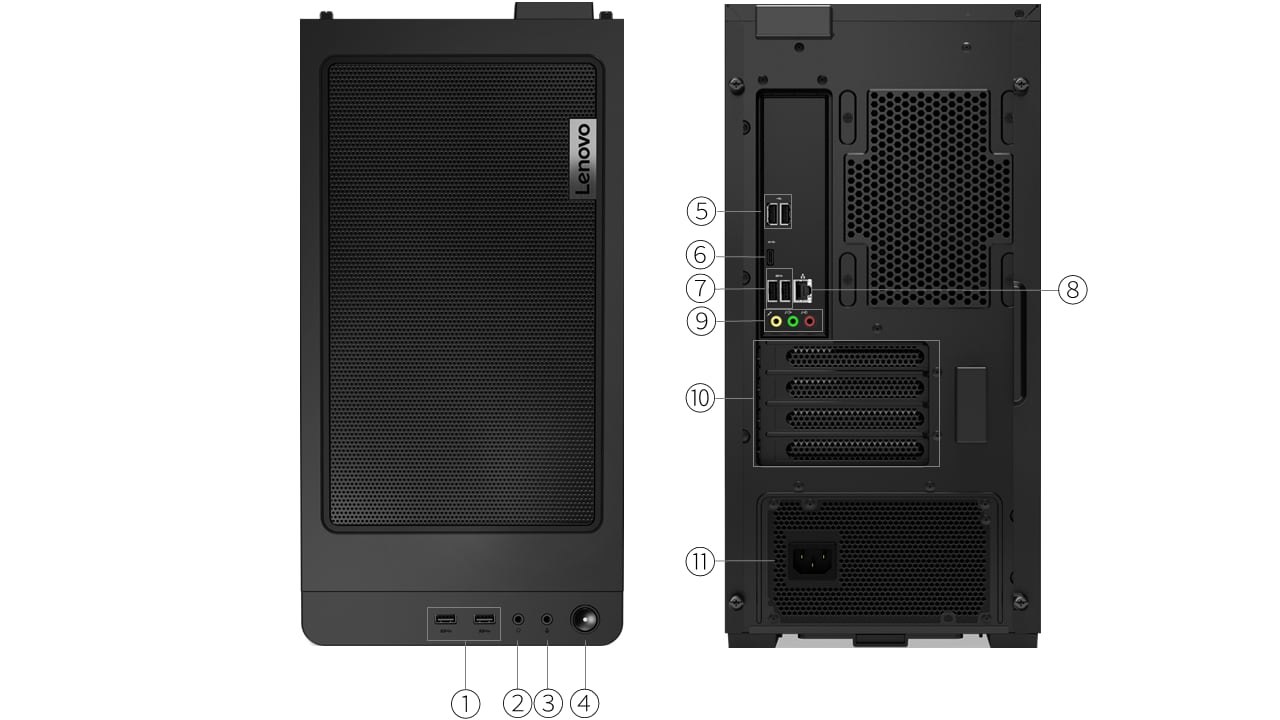

Overview
|
1.
2x USB 3.2 Gen 1
|
7.
2x USB 2.0
|
|
2.
Headphone (3.5mm)
|
8.
Ethernet (RJ-45)
|
|
3.
Microphone (3.5mm)
|
9.
3x Audio line-out (3.5mm)
|
|
4.
Power button
|
10.
Optional ports on expansion cards
|
|
5.
2x USB 3.2 Gen 1
|
11.
Power connector
|
|
6.
USB-C 3.2 Gen 2
|
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i5-10400 | 6 | 12 | 2.9GHz | 4.3GHz | 12MB | DDR4-2666 | Intel UHD Graphics 630 |
| Core i5-10400F | 6 | 12 | 2.9GHz | 4.3GHz | 12MB | DDR4-2666 | – |
| Core i5-11400 | 6 | 12 | 2.6GHz | 4.4GHz | 12MB | DDR4-3200 | Intel UHD Graphics 730 |
| Core i5-11400F | 6 | 12 | 2.6GHz | 4.4GHz | 12MB | DDR4-3200 | – |
| Core i5-11500 | 6 | 12 | 2.7GHz | 4.6GHz | 12MB | DDR4-3200 | Intel UHD Graphics 750 |
| Core i7-10700 | 8 | 16 | 2.9GHz | 4.8GHz | 16MB | DDR4-2933 | Intel UHD Graphics 630 |
| Core i7-10700F | 8 | 16 | 2.9GHz | 4.8GHz | 16MB | DDR4-2933 | – |
| Core i7-11700 | 8 | 16 | 2.5GHz | 4.9GHz | 16MB | DDR4-3200 | Intel UHD Graphics 750 |
| Core i7-11700F | 8 | 16 | 2.5GHz | 4.9GHz | 16MB | DDR4-3200 | – |
| Core i9-11900 | 8 | 16 | 2.5GHz | 5.2GHz | 16MB | DDR4-3200 | Intel UHD Graphics 750 |
| Core i9-11900F | 8 | 16 | 2.5GHz | 5.2GHz | 16MB | DDR4-3200 | – |
Operating System
Graphics
Graphics[1]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features | Remark |
| NVIDIA® GeForce® GTX 1650 SUPER | Discrete | 4GB GDDR6 | 1x HDMI® 2.0b, 2x DP 1.4 | 7680×4320 @60Hz(DP), 4096×2160@60Hz(HDMI) | DirectX® 12 | – |
| NVIDIA GeForce GTX 1660 SUPER | Discrete | 6GB GDDR6 | 1x DVI, 1x HDMI 2.0b, 1x DP 1.4 | 4096×2160@60Hz(HDMI), 5120×3200@60Hz(DP), 2560×1660@60Hz(DVI) | DirectX 12 | – |
| NVIDIA GeForce RTX™ 3060 | Discrete | 12G GDDR6 | 3x DP 1.4a, 1x HDMI 2.1 | 7680×4320@60Hz(HDMI), 7680×4320@60Hz(DP) | DirectX 12 | – |
| NVIDIA GeForce RTX 3060 Ti | Discrete | 8G GDDR6 | 3x DP 1.4a, 1x HDMI 2.1 | 7680×4320@60Hz(HDMI), 7680×4320@60Hz(DP) | DirectX 12 | – |
| NVIDIA GeForce RTX 3070 | Discrete | 8G GDDR6 | 3x DP 1.4a, 1x HDMI 2.1 | 7680×4320@60Hz(HDMI); 7680×4320@60Hz(DP) | DirectX 12 | – |
- The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
Monitor Support
Chipset
Memory
Storage
Storage Support[1]
Storage Type
| Disk Type | Interface | RPM |
| 3.5″ SATA HDD | SATA 6Gb/s | 7.2K |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | – |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 | – |
- 2.5” HDD bay is for customer self upgrade purpose and the hard drive is sold separately.
Removable Storage
Power Supply
Design
Input Device
Mechanical
Cooling System (Fan&Cooler)
- (Optional) 2x top system fan for airflow with ARGB, 2x front system fan with ARGB, 1x rear system fan for airflow with ARGB
- (Optional) 2x front system fan with ARGB, 1x rear system fan for airflow with ARGB
- (Optional) 1x front system fan, 1x rear system fan
- (Optional) 1x rear system fan with ARGB
- (Optional) 1x rear system fan
- (Optional) 65W basic cooler, 95W advance cooler, 150W premium cooler
- (Optional) M.2 SSD heatsink or M.2. SSD DECO MYLAR heatsink
- (Optional) CPU VRM heatsink
- (Optional) PCH heatsink
Connectivity
Network
Ports[1]
Rear Ports[2]
- 2x USB 2.0
- 2x USB 3.2 Gen 1
- 1x USB-C 3.2 Gen 2 (support data transfer and 5V@3A charging)
- 3x audio out (5.1 channel)
- 1x Ethernet (RJ-45)
- 1x power connector
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
- For video ports on discrete graphics, please see graphics section
Security & Privacy
Service
Environmental
| Weight | 14000 g |
|---|---|
| Manufacturer | |
| Processor | |
| Storage Capacity | |
| Storage Type | |
| Operating System | |
| Graphics card (GPU) | |
| Warranty | |
| Importer | CMS |
| Warranty Provider | Lenovo |
| Colour |
